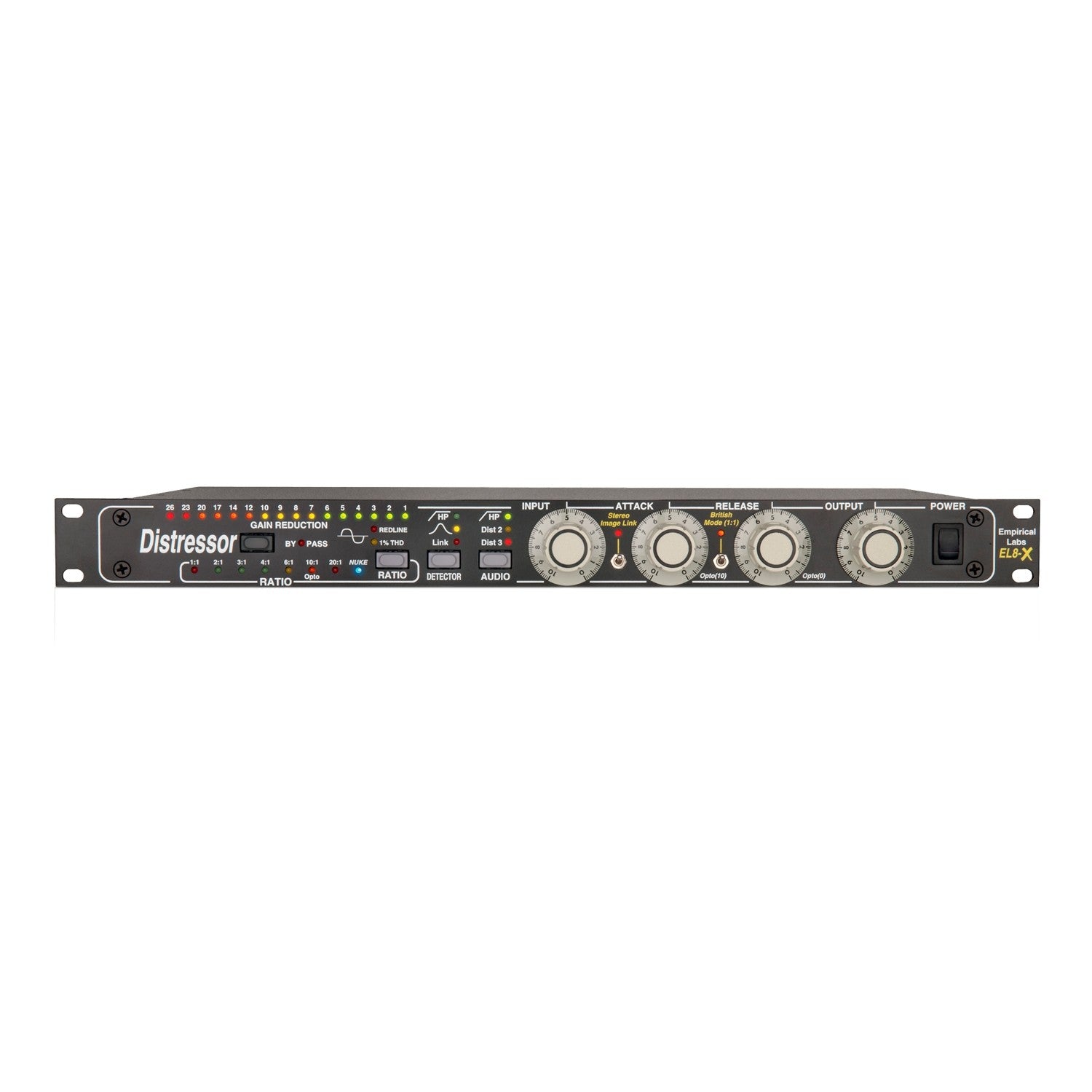

Empirical Labs EL8-X Distressor with British Mode and Image Link

Empirical Labs Distressor EL-8XM Single-channel Analog Compressor with British Mode Features:

• "All buttons in" British Mode switch with LED
• Frequency response: 2Hz to 160kHz in clean audio mode (+0, -3 dB). Response is shaped in distortion modes (Dist 2, Dist 3)
• Dynamic range: 110 dB from max. output to min. output in 1:1 mode.
• Distortion ranges between .02% and 20% depending on distortion mode and release times set on front panel.
• DC coupled output - High quality input caps.
• Input impedance: 20K ohms
• Output impedance: < 75 ohms
• Time constants: Attack range 50uS - 50mS
• Release range: .05 sec to 3.5 seconds, normal modes and up to 20 seconds in 10:1 opto mode. Time constants are dependant on ratio.
• Metal chassis
• Dimensions: 1.75" H x 10" D x 19" W
