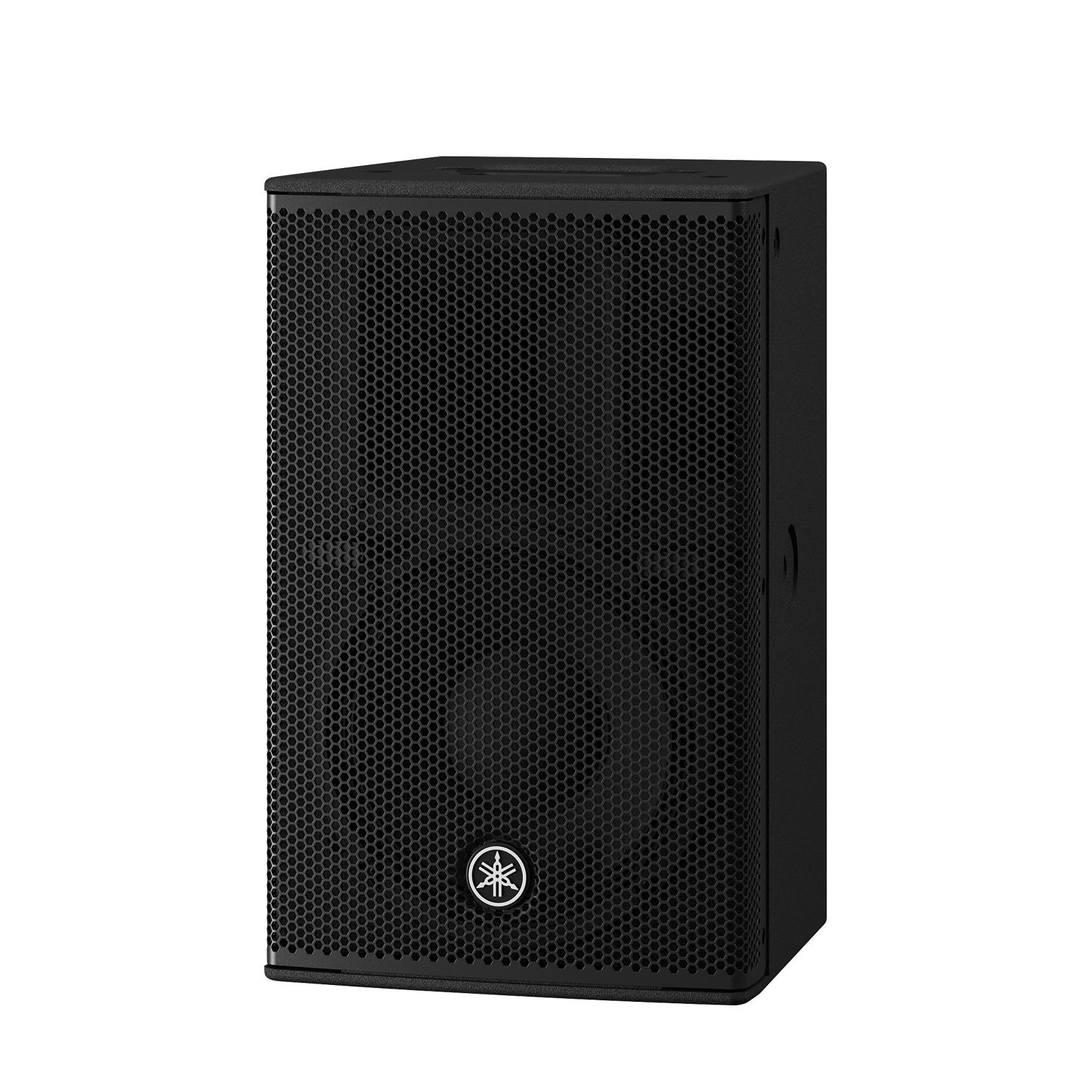

Yamaha - DHR10 700W 10-inch Powered Loudspeaker
The Yamaha DHR10 is a 2-way bi-amped powered loudspeaker engineered for superior sound quality and durability, making it an excellent choice for fixed installations. It features a 10-inch woofer and a 1.4-inch high-frequency driver, delivering clear and powerful audio performance. Constructed with high-grade plywood and finished with a robust polyurea coating, the DHR10 is designed to withstand the rigors of professional use.
Product Features:
• High-Quality Components: Equipped with a 10-inch LF driver and a 1.4-inch HF compression driver, the DHR10 ensures accurate and dynamic sound reproduction.
• Durable Construction: The plywood enclosure with a polyurea coating offers a robust, scratch-resistant surface, ensuring longevity and reliability.
• Flexible Installation: The rotatable HF horn allows for both horizontal and vertical orientation, providing versatility in various installation environments.
• Optional Mounting Accessories: Compatible with the UB-DXRDHR10 U-bracket, facilitating easy wall or ceiling mounting in different configurations.
• Advanced DSP Processing: Incorporates FIR-X™ tuning, offering FIR filtering and corrective EQ to minimize phase distortion and enhance sound clarity.
Product Specifications:
|
Specification |
Details |
|---|---|
|
Speaker Type |
2-way, Bi-amped Powered Speaker, Bass-reflex |
|
Frequency Range (-10dB) |
52 Hz - 20 kHz |
|
Coverage Area |
H90° x V60° (Rotatable) |
|
Crossover |
1.9 kHz: FIR-X tuning™ (linear phase FIR filter) |
|
Maximum Output Level |
128 dB SPL (Measured peak, IEC noise@1m) |
|
LF Driver |
Diameter: 10” cone, Voice Coil: 2”, Magnet: Ferrite |
|
HF Driver |
Diaphragm: 1.4”, Type: 1” throat compression driver, Magnet: Ferrite |
|
Amplifier Class |
Class-D |
|
Power Rating |
Dynamic: 700 W (LF: 500 W, HF: 200 W); Continuous: 325 W (LF: 260 W, HF: 65 W) |
|
Cooling |
Fan cooling, 4 speeds |
|
Power Consumption |
60 W (1/8 power), 18 W (Idle) |
|
Power Requirements |
100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz |
Applications:
The Yamaha DHR10 is ideally suited for:
• Fixed Installations: Its compact design and flexible mounting options make it perfect for permanent installations in venues such as auditoriums, houses of worship, and conference rooms.
• Portable PA Systems: With its durable construction and high output capability, the DHR10 is also suitable for portable sound reinforcement applications, including live performances and public speaking events.
• Stage Monitoring: The clear and accurate sound reproduction makes the DHR10 an excellent choice for on-stage monitoring for musicians and performers.
