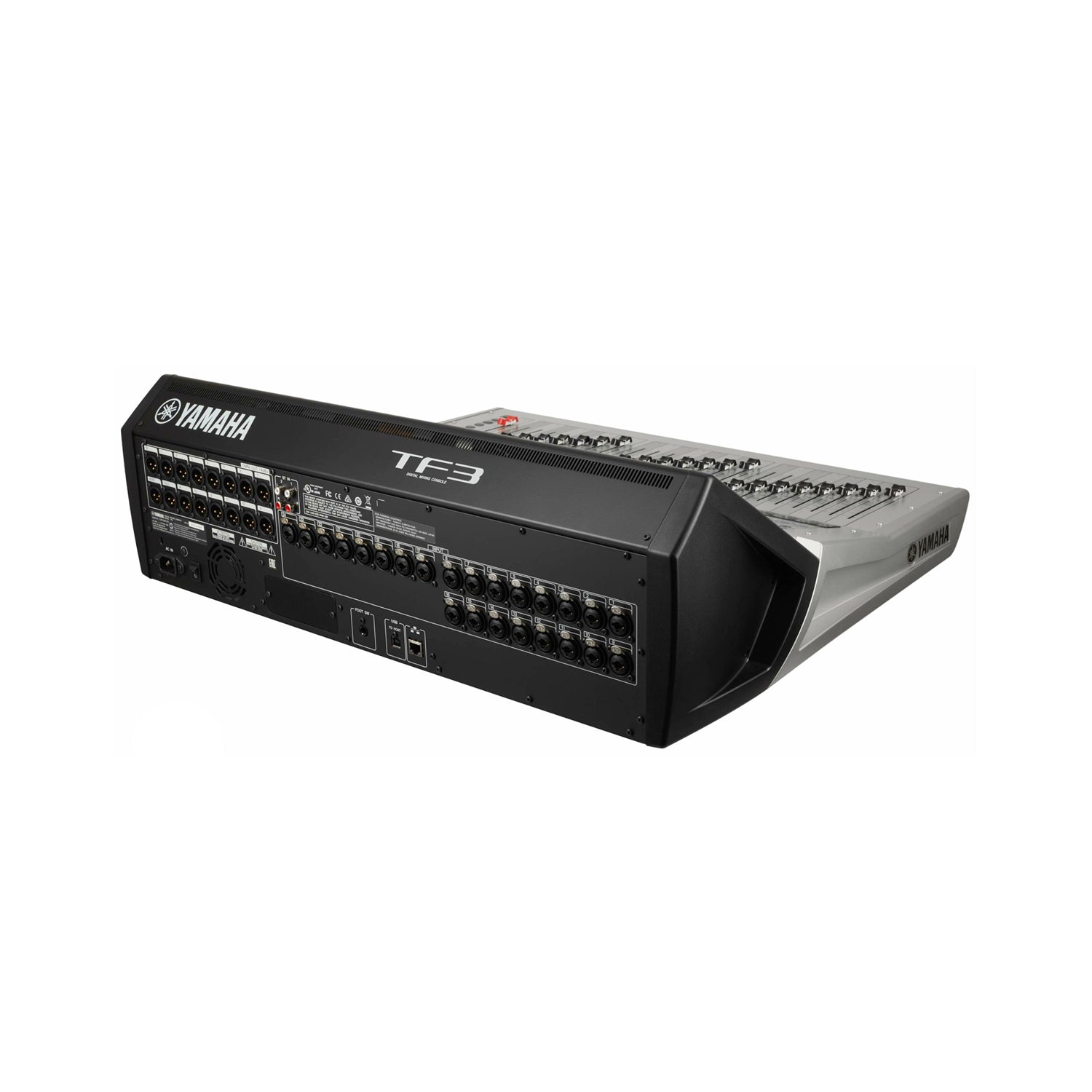

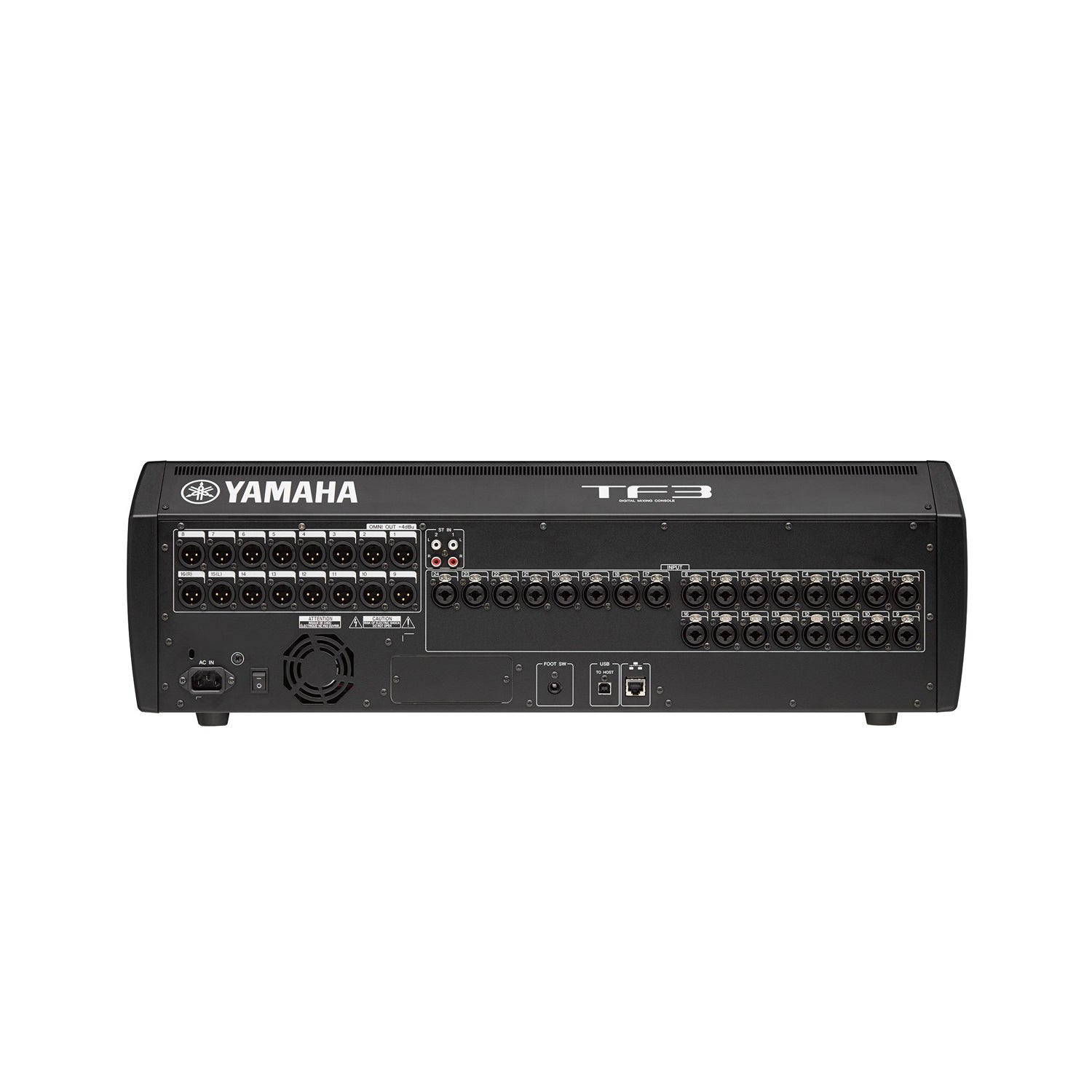

Yamaha TF3 48-channel Digital Mixer
Yamaha TF3 Digital Audio Mixing Console
The Yamaha TF3 Digital Audio Mixing Console is a professional-grade mixer designed for live sound, recording, and broadcast applications. With an intuitive touchscreen interface, high-quality preamps, and versatile features, the TF3 is built to deliver exceptional sound and user-friendly operation for engineers of all experience levels. Its sleek and ergonomic design combines advanced functionality with reliability, making it the perfect choice for small to medium-sized venues, houses of worship, corporate events, and more.
Key Features
- TouchFlow Operation™: Innovative interface with a 7-inch touchscreen for intuitive and responsive control.
- D-PRE™ Preamps: Studio-grade Class-A preamps for pristine audio quality.
- Built-in Effects and Processing: 8 powerful FX processors and 10-band EQs on all outputs.
- 1-knob Control: Simplifies complex mixing tasks for easy operation.
- Scene Memory and Recall: Store and recall up to 200 scenes for various performances and events.
- Expandable I/O: 24 analog inputs, 16 outputs, and additional expandability via Dante networking.
- USB Multitrack Recording: Built-in USB interface for recording and playback up to 34 channels.
- Compatibility: Works seamlessly with Yamaha apps for remote control and offline editing.
Product Specifications
| Feature | Details |
|---|---|
| Mixing Channels | 25 (22 mono + 2 stereo + 1 FX return) |
| Input Channels | 24 analog + 2 stereo (Dante compatible) |
| Output Channels | 16 outputs (8 XLR, 8 via Dante) |
| Effects Processors | 8 (reverb, delay, modulation, etc.) |
| Sampling Rate | 48 kHz |
| A/D & D/A Resolution | 24-bit |
| Touchscreen | 7-inch color multi-touch display |
| EQ | 4-band parametric EQ per channel |
| Preamps | D-PRE (Discrete Class-A Mic Preamps) |
| Phantom Power | +48V (selectable per channel) |
| Scene Memory | 200 scenes |
| USB Audio Interface | 34 x 34 channels (record/playback) |
| Network | Dante, Ethernet for remote control |
| Weight | 13.5 kg (29.8 lbs) |
| Dimensions (WxHxD) | 716 x 225 x 599 mm |
Applications
- Live Sound Reinforcement: Ideal for small to medium-sized venues, concerts, and corporate events.
- Houses of Worship: Easy-to-use features for volunteer operators and excellent sound for sermons and music.
- Recording Studios: USB multitrack recording makes it suitable for project studios and live recordings.
- Broadcasting: High-quality audio and flexible I/O for production environments.
- Theater and AV Installations: Compact, reliable, and user-friendly for stage and event setups.
With its blend of cutting-edge technology and practicality, the Yamaha TF3 Digital Audio Mixing Console is an outstanding choice for professionals and enthusiasts seeking unparalleled performance and convenience.
